Urbino Edition 3-Piece Double-Bend Horizontal Oval Head PDR Rod Set with T-Handles (10mm)

The PDR INOX Urbino Edition 3-Piece Double-Bend Horizontal Oval Head PDR Rod Set is engineered for professional paintless dent repair applications that require controlled leverage, deep panel access, and improved clearance around internal vehicle structures.

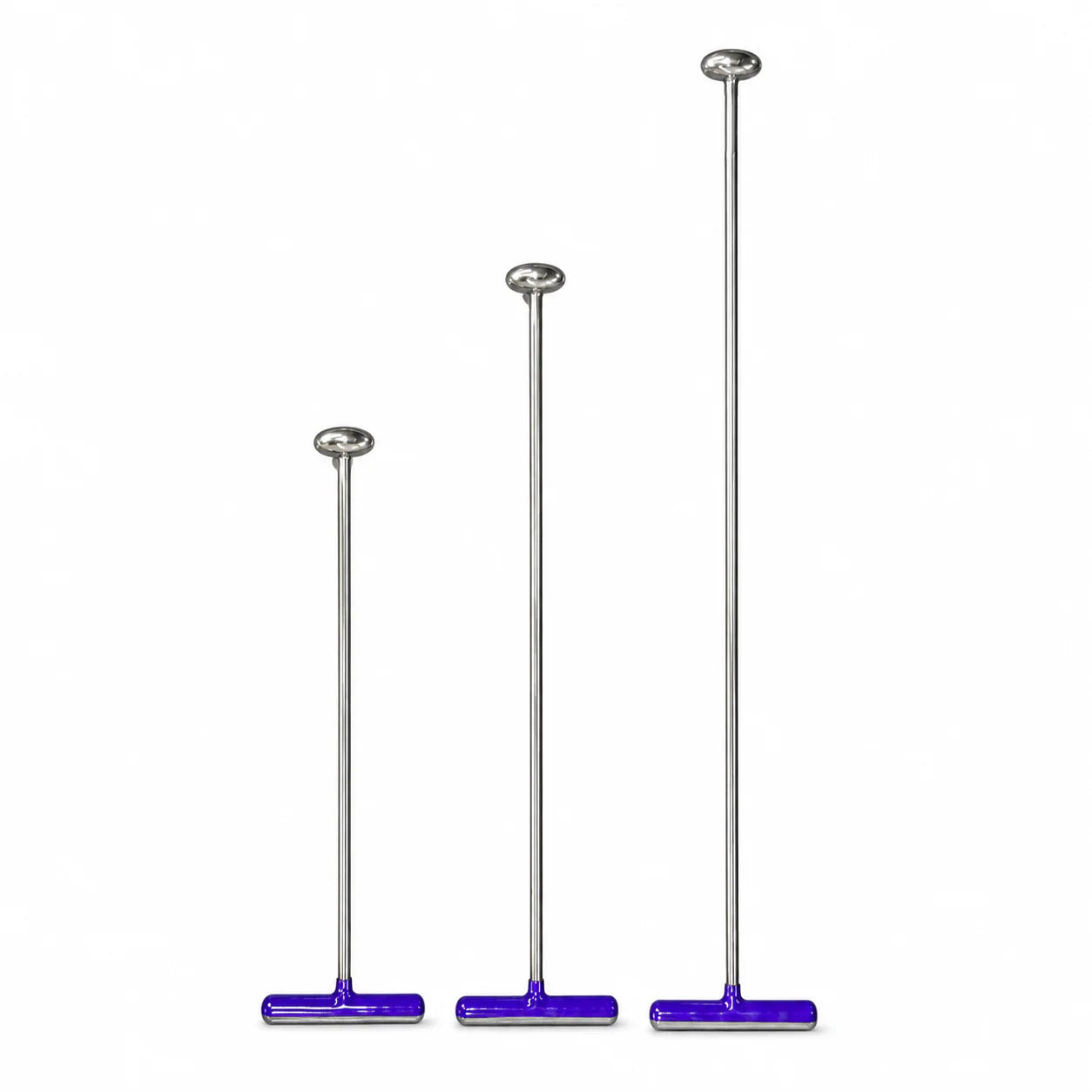

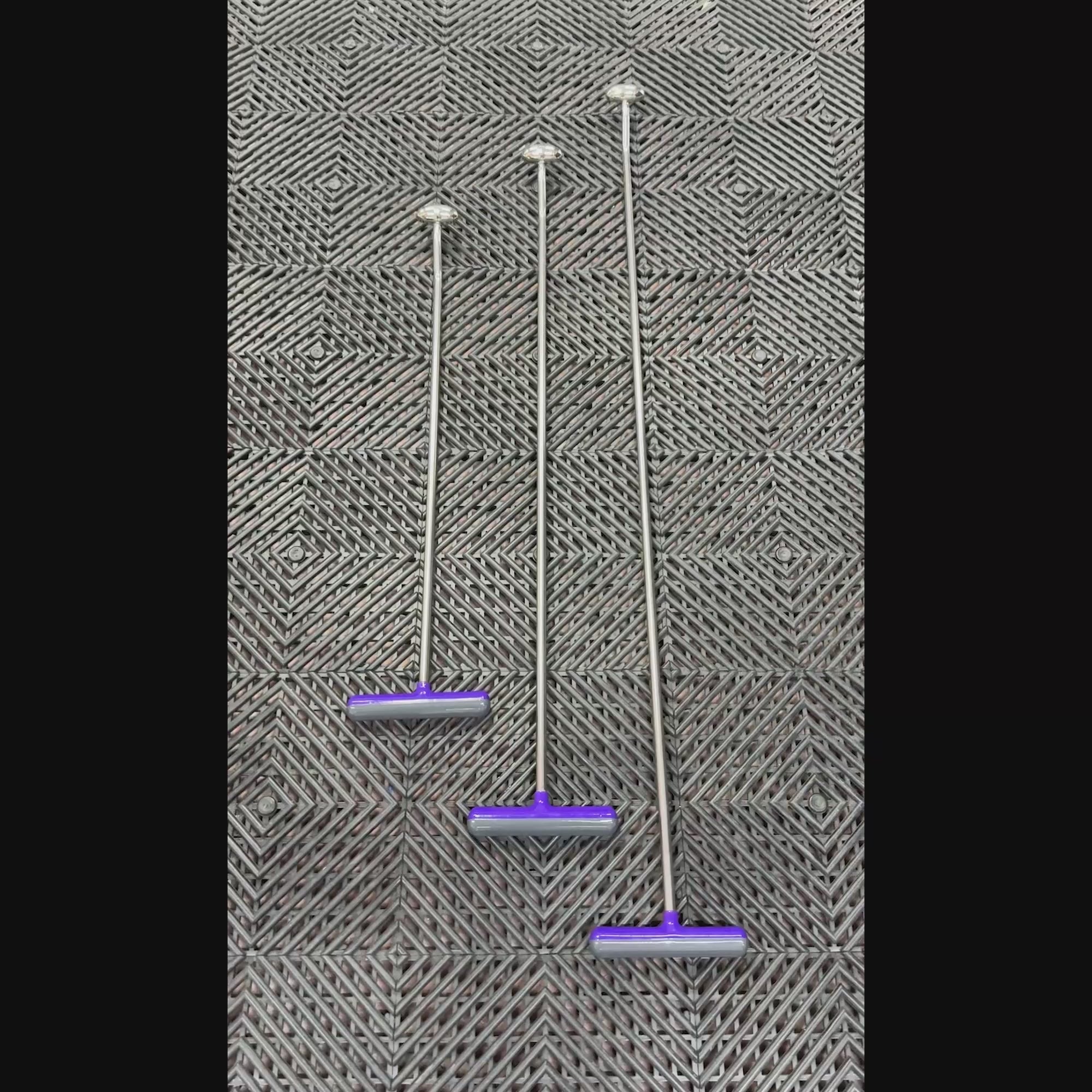

The set includes three complete PDR tools in progressive 61 cm, 81 cm, and 101 cm lengths. Each tool features an integrated ergonomic T-handle, providing technicians with a secure grip and controlled rotational leverage throughout demanding repair work.

Each rod features two precision bends formed at 152°. This double-bend profile creates the offset required to work around internal reinforcements and approach the back of the damaged panel from a more effective working angle.

All three rods are manufactured from high-quality stainless steel and feature a solid 10 mm diameter. The rigid construction provides dependable force transfer and strong leverage across the full length of each tool.

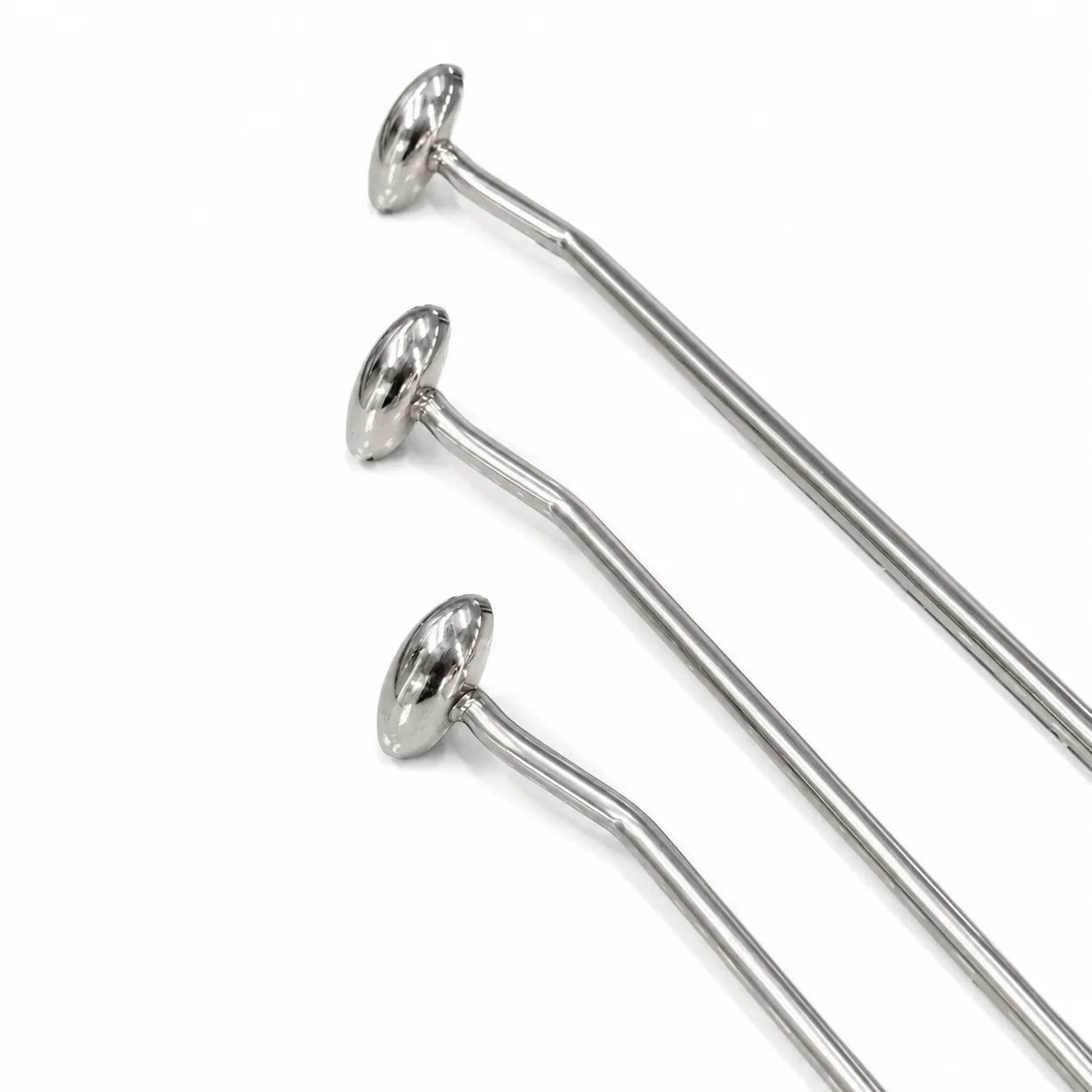

Each tool features a permanently welded 50 × 25 mm oval working head. The working surface is mounted in a horizontal orientation across the direction of the shaft, distinguishing it from vertically positioned oval heads.

This transverse head position creates a stable contact area across the panel surface. Combined with the double-bend shaft and integrated T-handle, it is particularly suitable for controlled pushing across low spots, crowns, and obstructed repair areas where evenly distributed pressure is preferred over a sharp contact point.

Key Features:

• Three Complete PDR Tools: Includes 61 cm, 81 cm, and 101 cm rods with integrated T-handles.
• Precision Double-Bend Profile: Two 152° bends provide clearance around internal panel structures.
• Horizontal Oval Working Head: The 50 × 25 mm contact surface is positioned crosswise to the shaft.
• Controlled Contact Area: Distributes pressure smoothly across focused repair areas.
• Ergonomic T-Handles: Offer a secure grip and controlled rotational leverage during repair work.
• 10 mm Solid Shaft: Provides excellent rigidity, leverage, and controlled power transfer.
• Stainless Steel Construction: Offers corrosion resistance, long-term durability, and a professional polished finish.
• Permanently Welded Head: Ensures a strong connection and consistent pressure transfer.
• Professional Applications: Suitable for doors, roofs, hoods, low spots, crowns, and obstructed deep-access areas.

Technical Specifications:

Additional Specifications:

• Set Contents: 3 handled PDR rods
• Rod Diameter: 10 mm (0.39 in)
• Working Head Size: 50 × 25 mm (1.97 × 0.98 in)
• Working Head Type: Oval head – horizontally oriented
• Head Connection: Permanently welded
• Handle Type: Integrated ergonomic T-handle
• Material: Stainless steel
