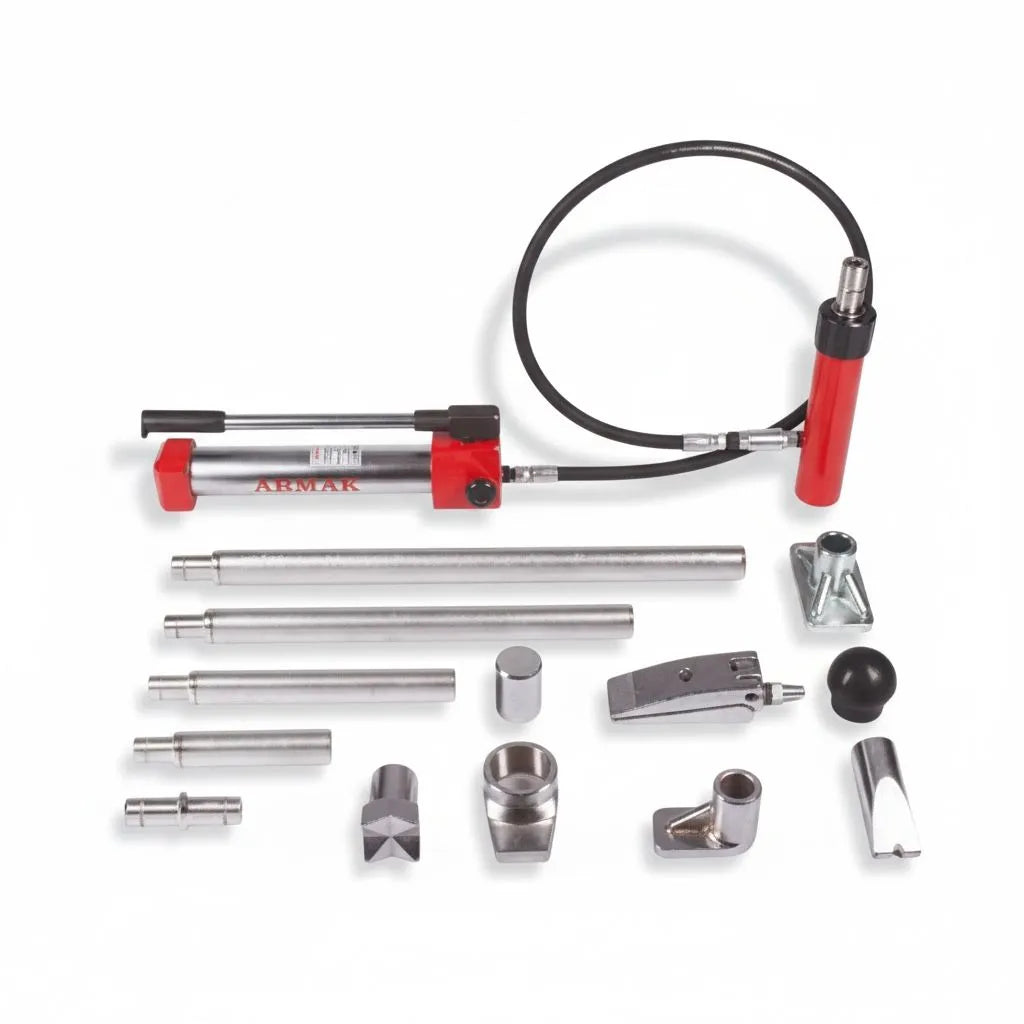

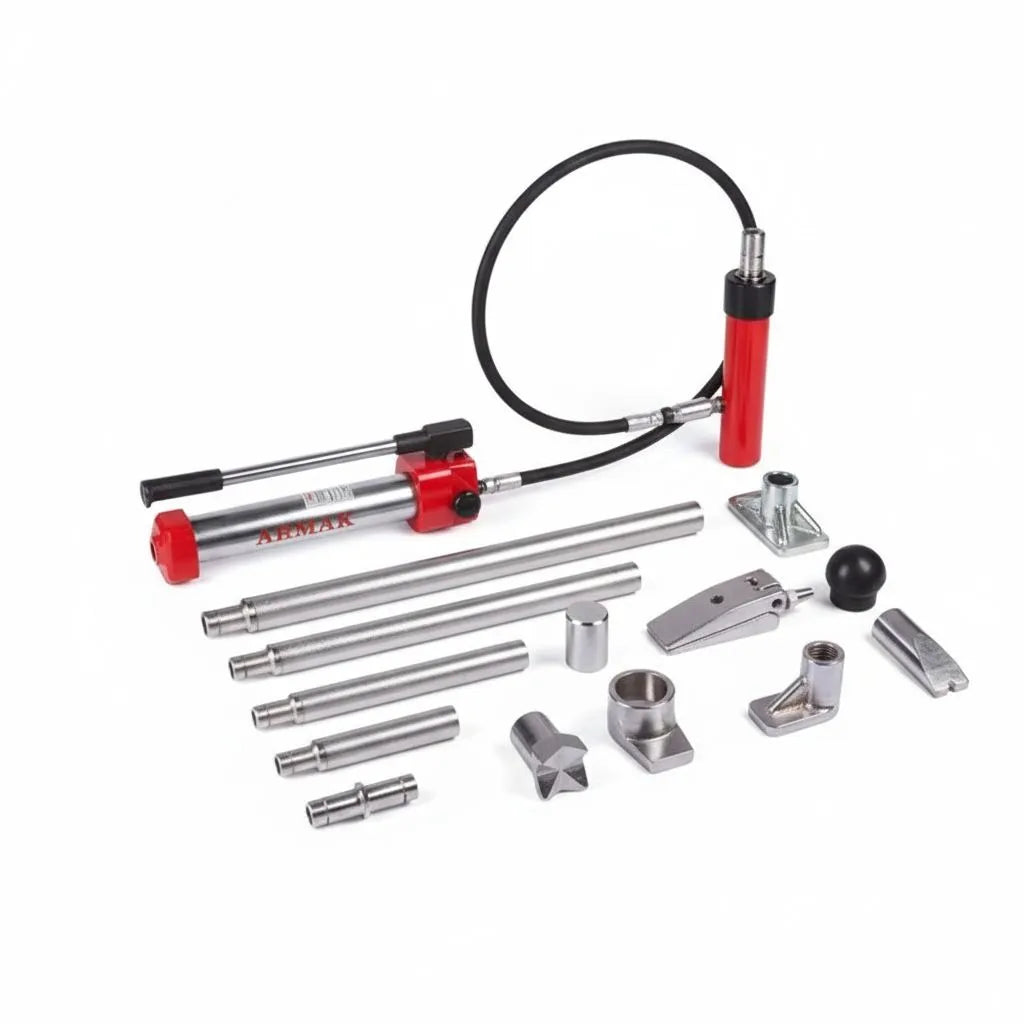

PDR INOX Hydraulic Auto Body Straightening Kit – 10 Ton, Modular Type
The PDR INOX Hydraulic Auto Body Straightening Kit – 10 Ton is designed for professional automotive body straightening, frame alignment, and heavy-duty dent repair applications. Delivering up to 10 tons of hydraulic force, this powerful system provides reliable pushing and pulling performance for demanding repair tasks.
Equipped with a hardened and ground piston, the system ensures durability, smooth operation, and long service life under high pressure. The 105 mm piston stroke offers a wide working range, while the integrated oil filtration system helps maintain clean and efficient hydraulic performance.
Its modular (quick-connect) design allows fast assembly and disassembly, making the kit easy to transport and highly practical for both workshop and mobile repair use. The included extension tubes in multiple lengths enable flexible setup for various straightening and spreading applications.

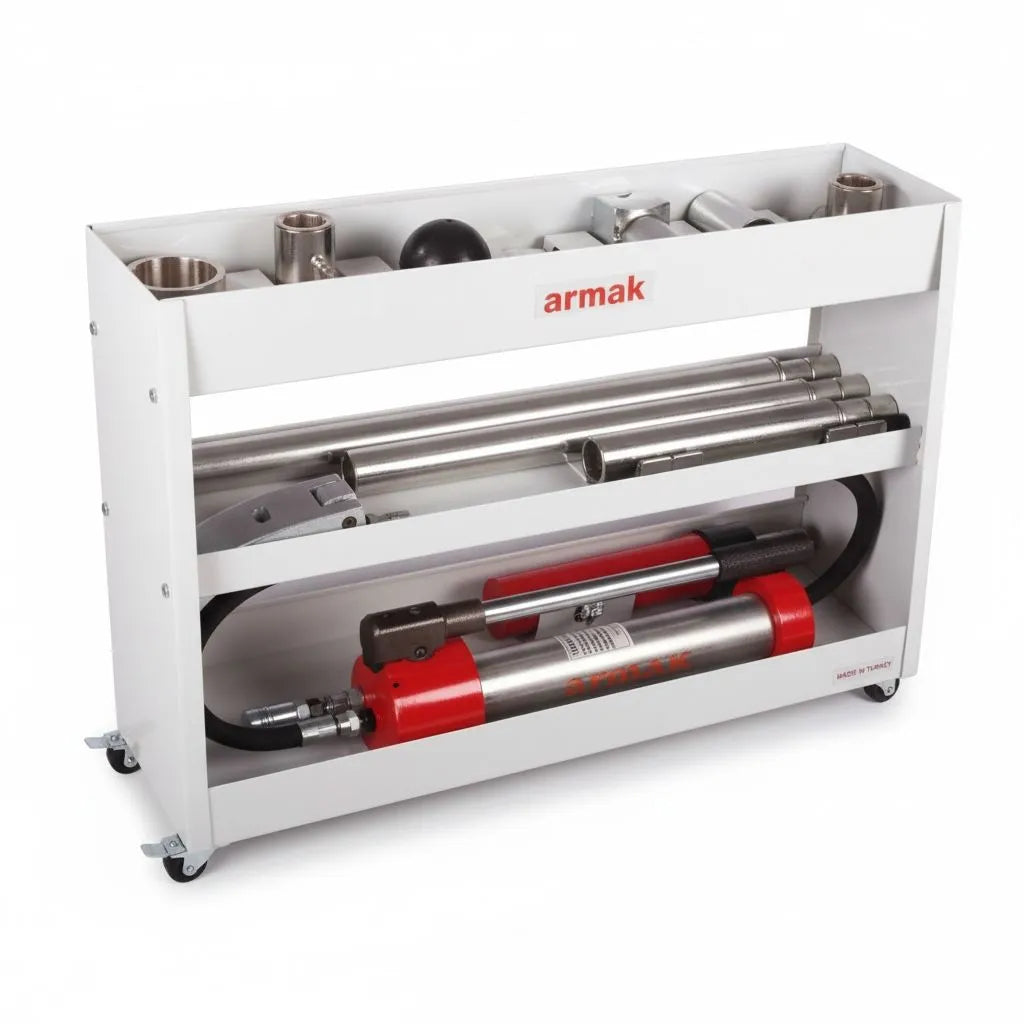

Forged steel support attachments and the heavy-duty claw spreader ensure safe and controlled force transfer during operation. All components are supplied in a robust shipping case, providing protection and convenient storage.
Manufactured to PDR INOX quality standards, this hydraulic straightening kit is an ideal solution for professional auto body shops, collision repair centers, and automotive repair technicians.
Technical Specifications
- • Maximum Force: 10 Ton
- • Piston Type: Hardened & Ground
- • Piston Stroke: 105 mm
- • Hydraulic System: Oil-filtered
- • Design: Modular / Quick-connect, portable
- • Extension Tubes: 590 / 450 / 250 / 120 mm
- • Extension Tube Connector: 128 mm x 5
-
• Claw Spreader:
- o Force Capacity: 250 kg
- o Opening Range: 75 mm
- Supports: Forged steel
